Automatic Hydraulic Bending Machine CNC Bender 3.2m Stainless Steel Folding

  • 1
  • 2
  • 3

Brand Name : D.K.HISTRON

Model Number : HC-220T/3200

Certification : CE，ISO900

Place of Origin : China

MOQ : 1 Set

Price : depnds on model

Payment Terms : T/T

Supply Ability : 20sets/month

Delivery Time : 60 days

Packaging Details : Suitable for long distance transport

Product name : Digital bending machinie

Voltage : 380V,220V/380V,380V/50Hz,220V/1P/50HZ,110 - 480 v

Condition : New

Warranty : One Year

After-sales service provided : Engineers available to service machinery overseas,Field installation,commissioning and training,Video technical support,Field maintenance and repair service

Application : Sheet Metal folding and forming

Power(w) : 750,7.5kw/3kw,110 - 280 kw,35,22-160kw

Color : Clients' Requirement,Customer's Request,Silver Stainless Steel,Selected,Light Green

Contact Now

Automatic Hydraulic Bending Machine CNC Bender High Precision 3.2m Stainless Steel Large Folding Machine
Product Overview
Advanced Design

World-class machine tool modeling with streamlined design for optimal aesthetics and functionality.

High Performance

Features high precision, rigidity, large stroke capacity, and high-speed operation.

Versatile Operation

Scientific mold installation form adapts to a wide range of work applications.

Reliable Hydraulics

World-class hydraulic system with mechanical torsion shaft synchronization for precision and stability.

Technical Parameters

Model

HC-220T/3200

Normal force

2200KN

Worktable length

3200mm

Worktable width

100mm

Distance between columns

2700mm

Hose depth

400mm

Slider stroke

200mm

Maximum opening height

495mm

Wall panel column thickness

70mm

Slider thickness

80mm

Worktable upright plate thickness

100mm

Main motor power - oil pump

Motor 15KW-Oil pump 32ml/r

Slider rapid descent speed

180mm/s

Slider return speed

150mm/s

Slider working speed

10mm/s

CNC system

DA53T

Number of controlled axes

4 +1 axes

Back gauge X-axis stroke

600mm

Back gauge X-axis speed

200mm/s

External dimensions

4500×2200×3200mm

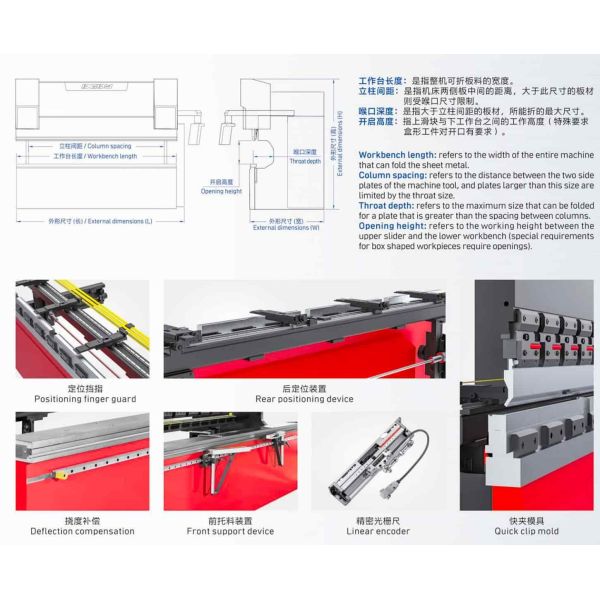

Mechanical Structure

The bending machine consists of a robust frame, columns, slide block, worktable, main cylinder, and back gauge. These components are meticulously optimized through finite element analysis and advanced TD software to ensure superior strength and rigidity. The structural elements are carefully designed for robustness and stability, significantly improving the machine's efficiency and durability.

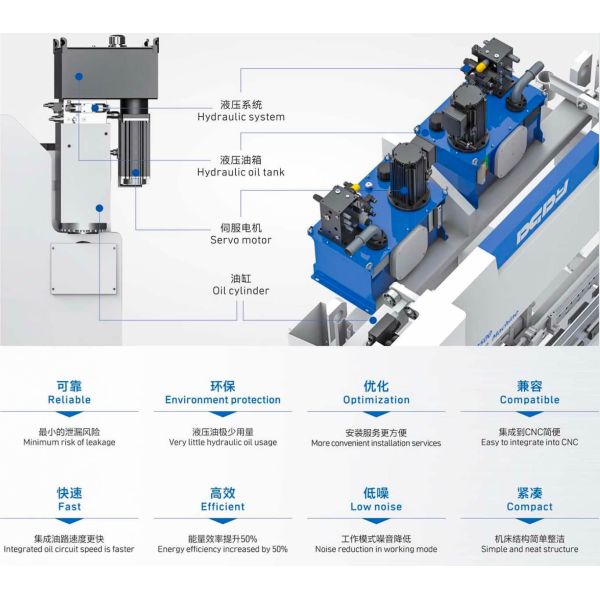

Motor System

The energy-saving servo motor reduces energy consumption by up to 40% while increasing stroke efficiency by 7-20%. Low-noise operation at 60 dB ensures minimal noise interference, creating a comfortable working environment.

Oil Pump

Constructed from high-strength cast iron, our oil pump features internal noise reduction for quieter operation. It prevents oil contamination, significantly extending service life and ensuring reliable performance.

Product Images
Automatic Hydraulic Bending Machine CNC Bender 3.2m Stainless Steel Folding Automatic Hydraulic Bending Machine CNC Bender 3.2m Stainless Steel Folding
Automatic Hydraulic Bending Machine CNC Bender 3.2m Stainless Steel Folding Automatic Hydraulic Bending Machine CNC Bender 3.2m Stainless Steel Folding
Automatic Hydraulic Bending Machine CNC Bender 3.2m Stainless Steel Folding

Automatic Hydraulic Bending Machine CNC Bender 3.2m Stainless Steel Folding

Frequently Asked Questions
How long is your production lead time?

It depends on the type of equipment. We often deliver goods within 60 days.

What are your terms of packing?

Export-worthy package suitable for container transportation including wooden case, iron pallet, plastic film, etc.

Do you test all your goods before delivery?

Yes, we perform 100% testing before delivery.

Where is your factory located?

Our factory is located in Qingdao, Shandong province.

Can you arrange third-party pre-shipment inspection?

Pre-shipment inspection by the supplier is final; third-party pre-shipment inspection is available at buyer's cost.
